The innovative XL optic of the ASPIRA-aXA combines the advantages of a 7.0 mm optic with the stability of the innovative cut-out haptic design, conveniently provided in the preloaded SAFELOADER® implantation system.

  • XL optic (Ø 7.0 mm) – For an extended view of the fundus
    Reliable peripheral fundus view, ideal for patients at increased risk of retinal diseases
  • XL optic (Ø 7.0 mm) – For large pupils
    Avoidance of interfering optical phenomena, especially in patients with large pupils
  • Cut-out haptics – For more stability
    Added stabilization for reliable refractive results
  • Preloaded SAFELOADER® – For more convenience
    Convenient, astigmatism-neutral implantation through small incisions. Intuitive. Simple. Fast.


ASPIRA-aXA provides a tailor-made solution for a diverse range of needs. Possible applications range from standard cataract and refractive surgeries to combined retinal surgery interventions.

More Information

Monofocal Aspira-aXA

Monofocal ASPIRA-aXA

Technical Information
Type Monofocal 1-piece posterior chamber lens, foldable
Optic diameter 7.0 mm
Total diameter 11.0 mm
Material Glistening-free, hydrophilic acrylic, UV blocker
Optic features Aspherical anterior surface, aberration-free, 360° LEC barrier, HD optic
Haptic design Cut-out haptics
Estimated A-constant
(optical biometry)
XL diopter range 10.0 to 30.0 D in 0.5 D steps
Preloaded in SAFELOADER®

Due to its XL 7.0 mm optic, this posterior chamber lens supplies the best conditions for long-term pseudophakic reliability for the patient. The extended fundus view, which is enabled by the possibility of a rhexis diameter of up to 6.5 mm, represents an enormous contribution to preventive patient management and early detection of ocular diseases.

Risk factors such as diabetes or hypertension are continuously increasing in our population.

Especially for this group within the cataract patients, the ASPIRA-aXA lays the foundations for long-term pseudophakic reliability.


APPROX. 20% – DIABETES TYPE 2 In the age group of the average cataract patient
OVER 80% – OVERWEIGHT In the age group of the average male cataract patient
MORE THAN 2/3 – HYPERTENSION Within the over-65 population

Extended Fundus View

Intraoperative image (using Verion) with implanted ASPIRA-aXA. Edge of the XL optic (black). Rhexis, diameter 6.0 mm (blue).

From a vitreoretinal point of view, both the surgeon and the postoperative doctor benefit from the extended fundus view. The assessment of the posterior segment of the eye and the implementation of therapeutic measures for peripheral retinal diseases can occur more conveniently.

ASPIRA-aXA offers patients with an increased risk of ocular diseases an advantage for long-term, successful pseudophakic treatment.

The ASPIRA-aXA is also an ideal treatment option for patients with large pupils. In these patients, the mesopic pupil width often exceeds the diameter of the IOL optic. Off-axis rays are scattered on the edge of the optic or pass the IOL and strike the retina as stray light. The result can be an increased incidence of dysphotopsia. With a conventional 6.0 mm optic, the patient could be affected by edge effects or other light phenomena.


The ASPIRA-aXA with its XL optic is an ideal treatment option for large pupils.

6mm optic 7 mm optic

Simulated beam guidance (temporal), based on a simulation using Zemax, OpticStudio 16.5 with a 6 mm optic and a 7 mm optic; pupil size 4 mm each.

Combining the benefits of C-loop haptics and conventional plate haptics for added stabilization:

  • The haptics are designed as absorption elements to absorb the energy of external forces without transmitting them to the IOL optic

Haptic schematic

HumanOptics AG (2017). Invitro-Simulation, Data on file.

Schematic drawing:
When force is applied, the cut-out haptics prove to be stable elements for positioning the IOL.

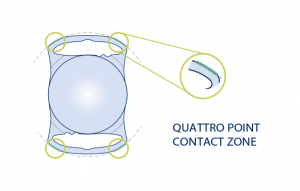

Quattro point contact zoneQuattro point design for stable placement in the capsular bag
